3D acoustic panels: the sculpted wall.

Name: 3D acoustic panels in PET felt
Brand: ACOUSTELIO
Availability: InStock

The 3D Panels collection sculpts our acoustic wall panels into volumes: deep waves, petals, pyramids, dunes. Twelve modules to compose on a layout plan, absorbing like felt (NRC 0.85) and diffusing sound like a sculpted surface. Fire-certified for public buildings.

Request a free quote Download the catalogue

42 modulesRef. 3D-01 to 3D-12

Absorbs + diffusesThe volume breaks sharp echoes

NRC 0.85The absorbent felt of the range

EN 13501-1 B-s1,d0Fire-classified, compliant for public buildings

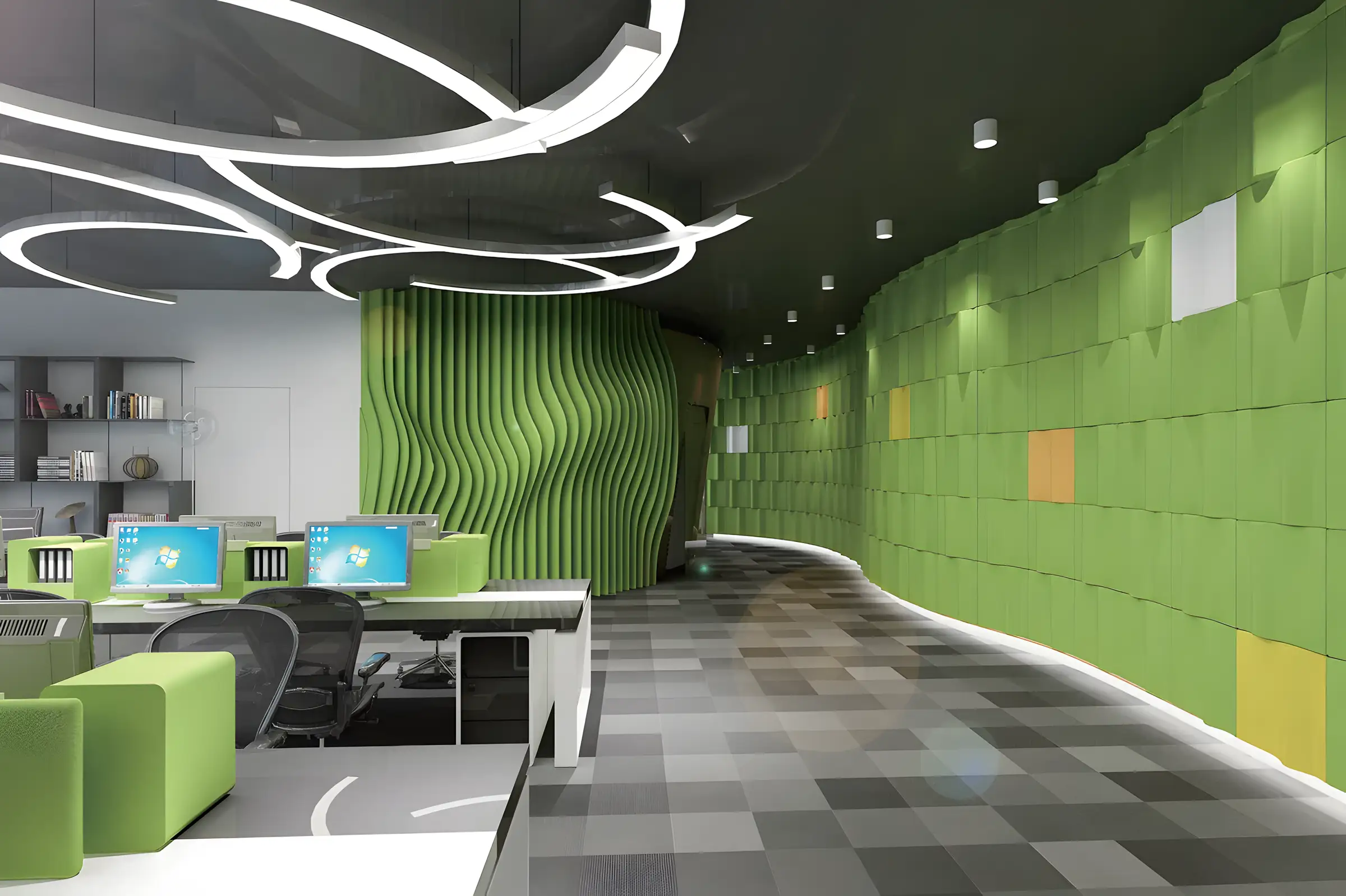

Office corridor dressed with a green sculpted 3D acoustic wall

FC-3D001 → FC-3D042

The 42 models in the collection

Every module comes in the 55 colours of the felt chart. Dimensions and thicknesses below, free layout.

FC-3D001 : Square 500 × 500 mm — FC-3D001 500 × 500 mm · th. 50 mm Square

FC-3D002 : Fan 500 × 396 mm — FC-3D002 500 × 396 mm · th. 50 mm Fan

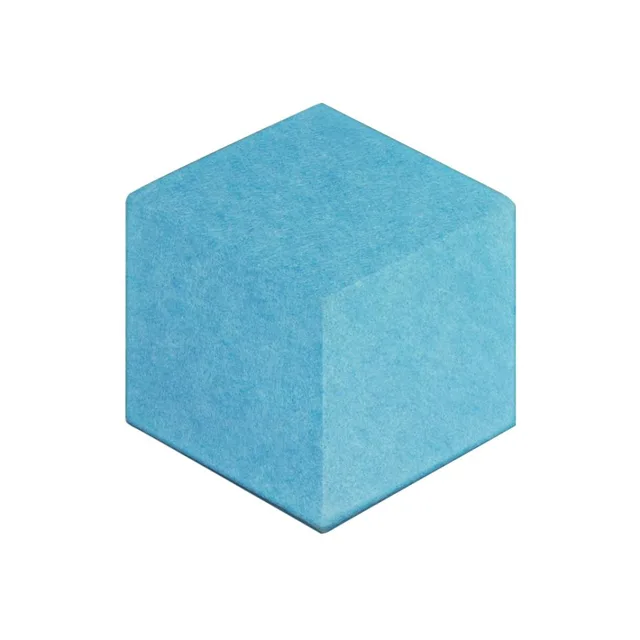

FC-3D003 : Hexagon 400 × 400 mm — FC-3D003 400 × 400 mm · th. 48 mm Hexagon

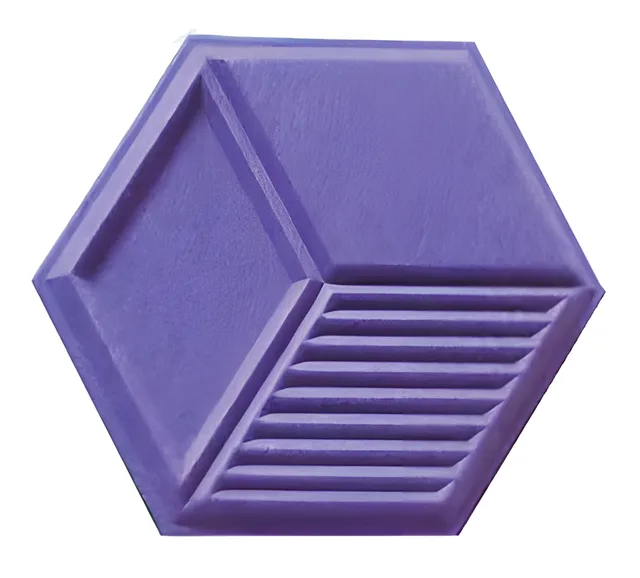

FC-3D004 : Hexagon 485 × 485 mm — FC-3D004 485 × 485 mm · th. 20 mm Hexagon

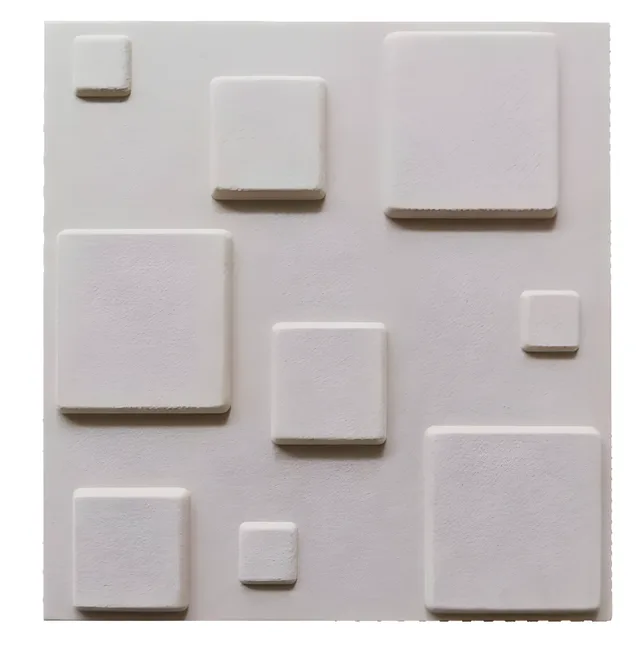

FC-3D005 : Square 500 × 500 mm — FC-3D005 500 × 500 mm · th. 19 mm Square

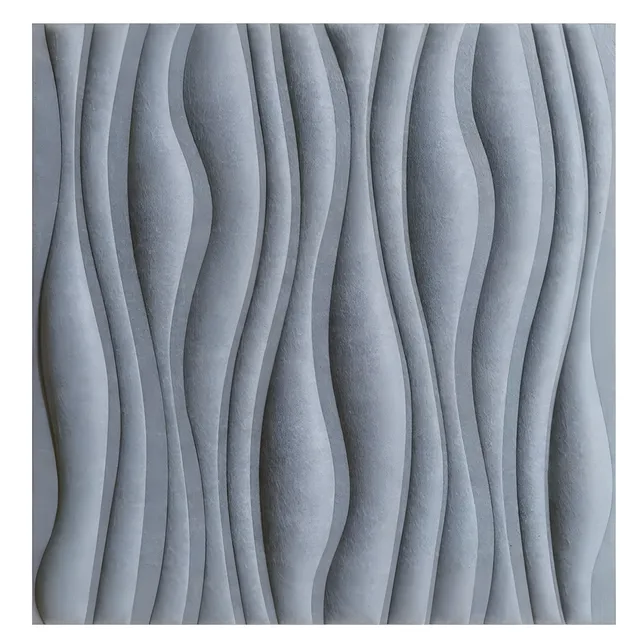

FC-3D006 : Square 300 × 300 mm — FC-3D006 300 × 300 mm · th. 13 mm Square

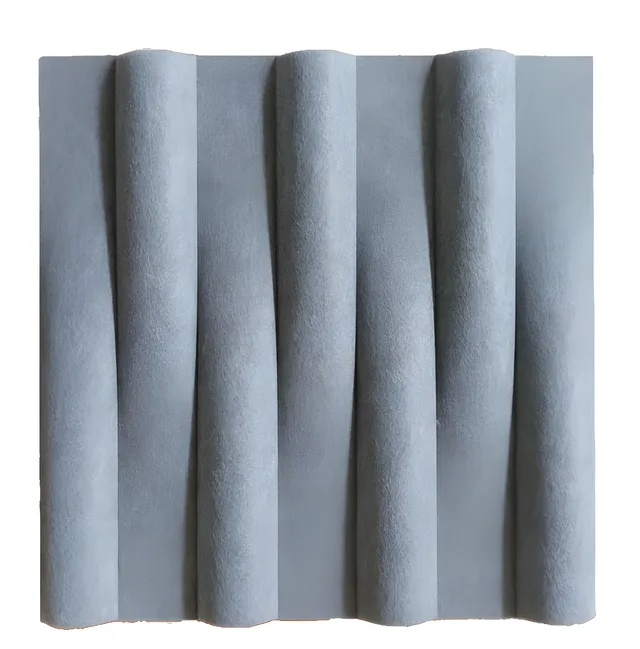

FC-3D007 : Square 500 × 500 mm — FC-3D007 500 × 500 mm · th. 31 mm Square

FC-3D008 : Square 500 × 500 mm — FC-3D008 500 × 500 mm · th. 50 mm Square

FC-3D009 : Square 500 × 500 mm — FC-3D009 500 × 500 mm · th. 38 mm Square

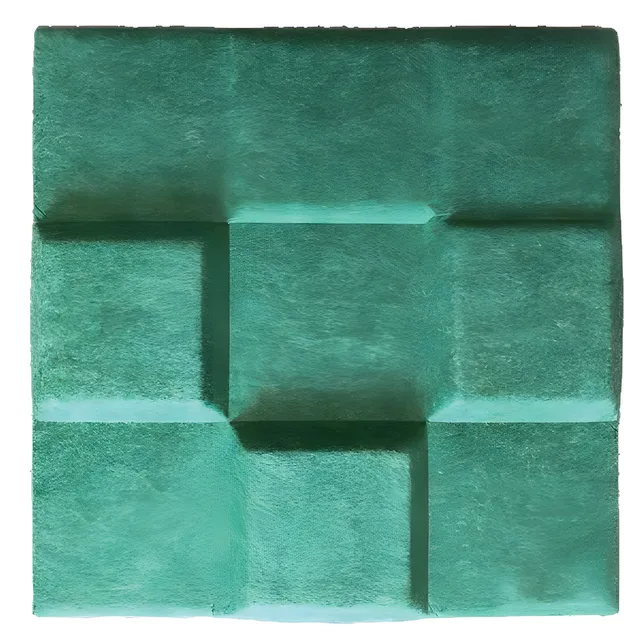

FC-3D010 : Square 300 × 300 mm — FC-3D010 300 × 300 mm · th. 35 mm Square

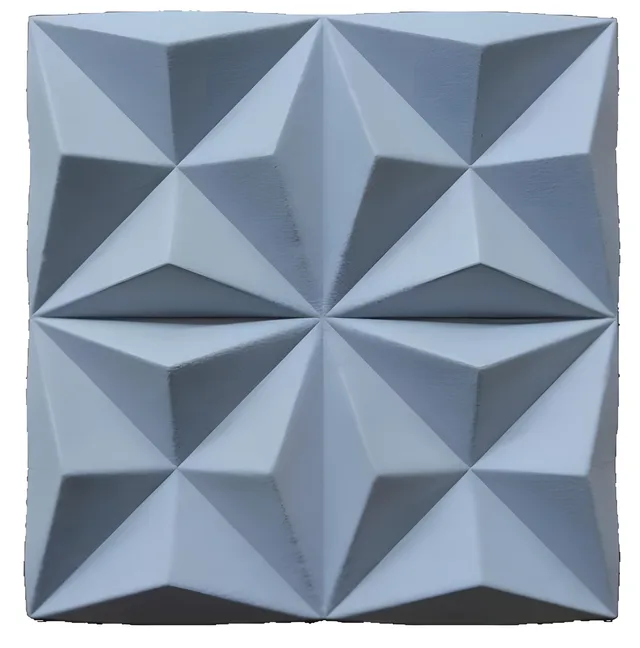

FC-3D011 : Square 500 × 500 mm — FC-3D011 500 × 500 mm · th. 45 mm Square

FC-3D012 : Square 500 × 500 mm — FC-3D012 500 × 500 mm · th. 45 mm Square

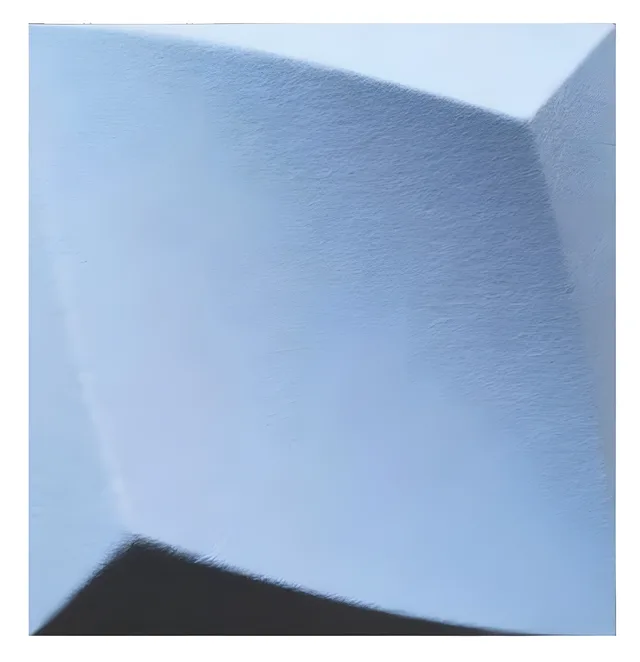

FC-3D013 : Square 500 × 500 mm — FC-3D013 500 × 500 mm · th. 45 mm Square

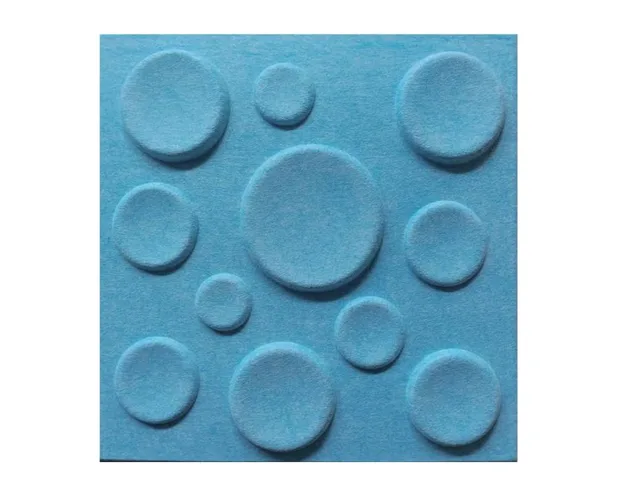

FC-3D014 : Square 500 × 500 mm — FC-3D014 500 × 500 mm · th. 20 mm Square

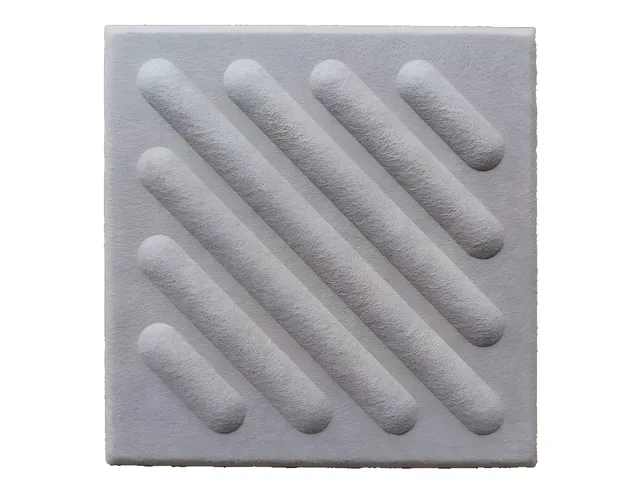

FC-3D015 : Square 300 × 300 mm — FC-3D015 300 × 300 mm · th. 16 mm Square

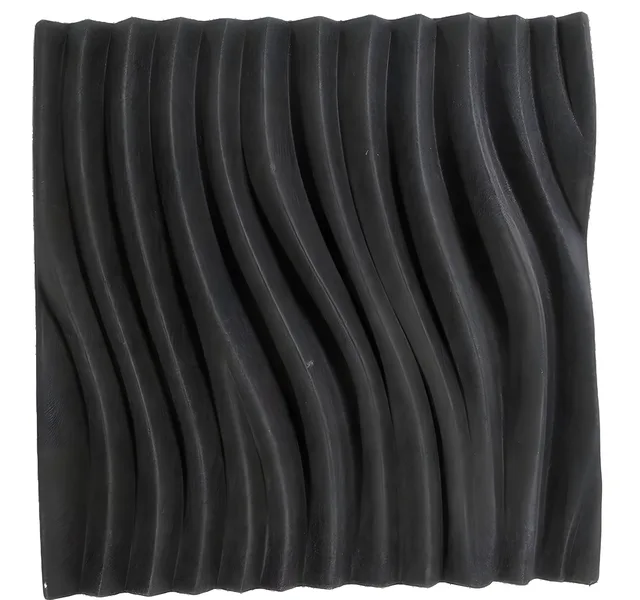

FC-3D016 : Square 500 × 500 mm — FC-3D016 500 × 500 mm · th. 49 mm Square

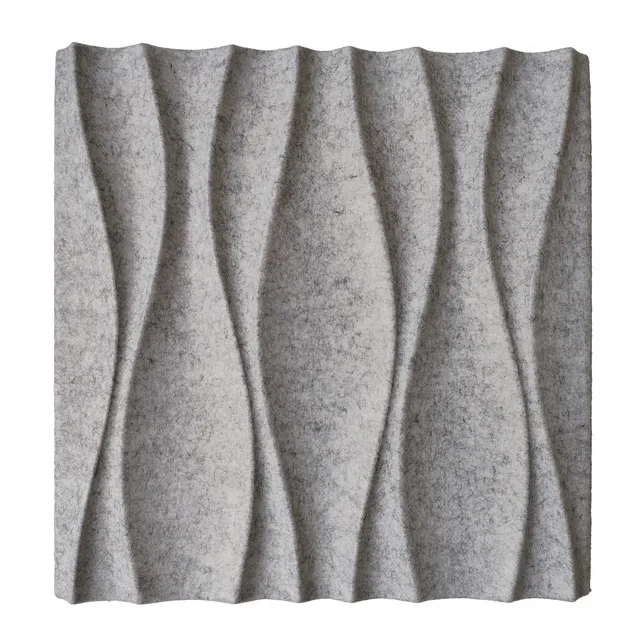

FC-3D017 : Square 500 × 500 mm — FC-3D017 500 × 500 mm · th. 30 mm Square

FC-3D018 : Square 500 × 500 mm — FC-3D018 500 × 500 mm · th. 45 mm Square

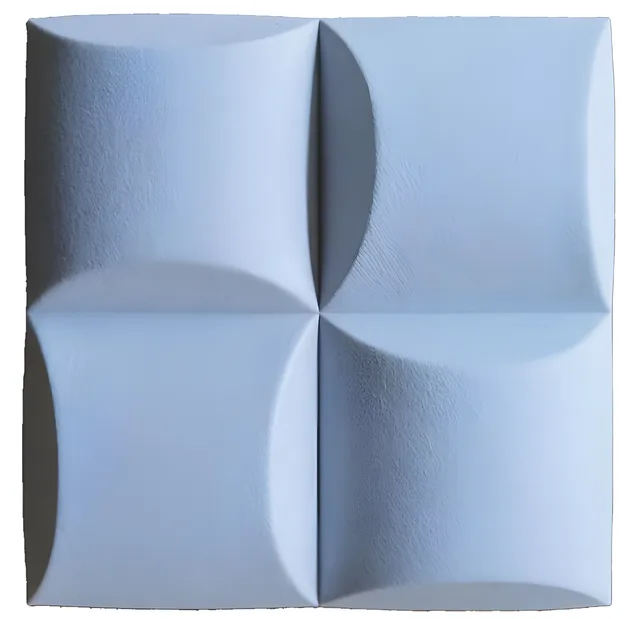

FC-3D019 : Square 500 × 500 mm — FC-3D019 500 × 500 mm · th. 50 mm Square

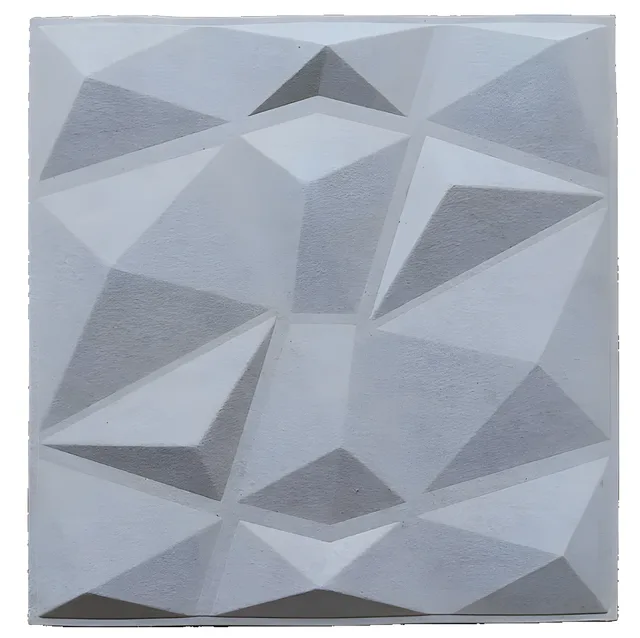

FC-3D020 : Square 500 × 500 mm — FC-3D020 500 × 500 mm · th. 20 mm Square

FC-3D021 : Square 500 × 500 mm — FC-3D021 500 × 500 mm · th. 25 mm Square

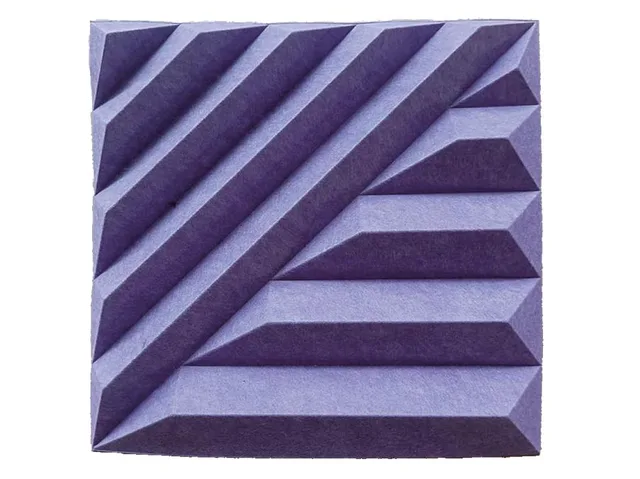

FC-3D022 : Square 500 × 500 mm — FC-3D022 500 × 500 mm · th. 40 mm Square

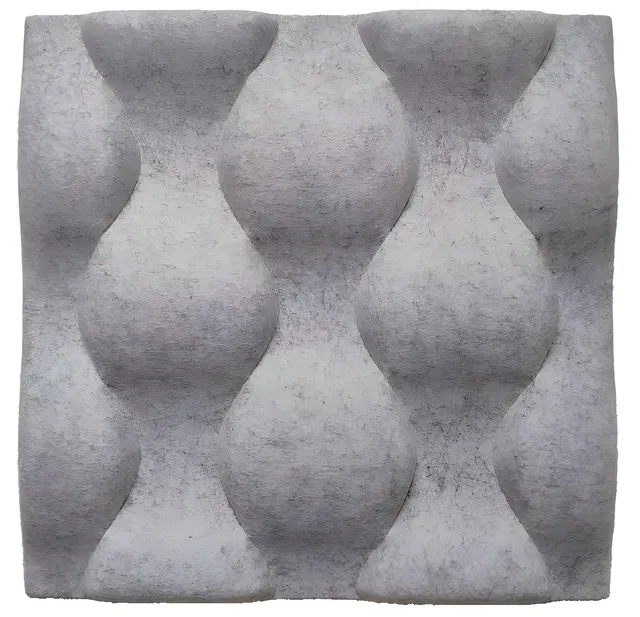

FC-3D023 : Square 500 × 500 mm — FC-3D023 500 × 500 mm · th. 45 mm Square

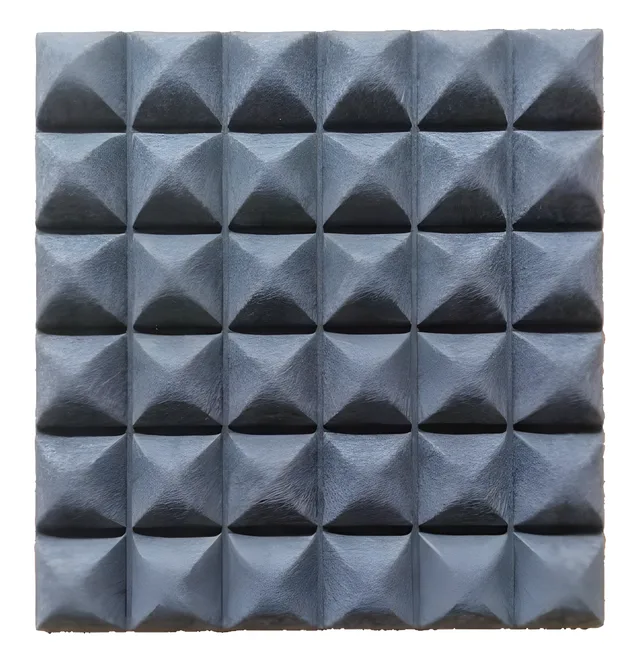

FC-3D024 : Square 500 × 500 mm — FC-3D024 500 × 500 mm · th. 50 mm Square

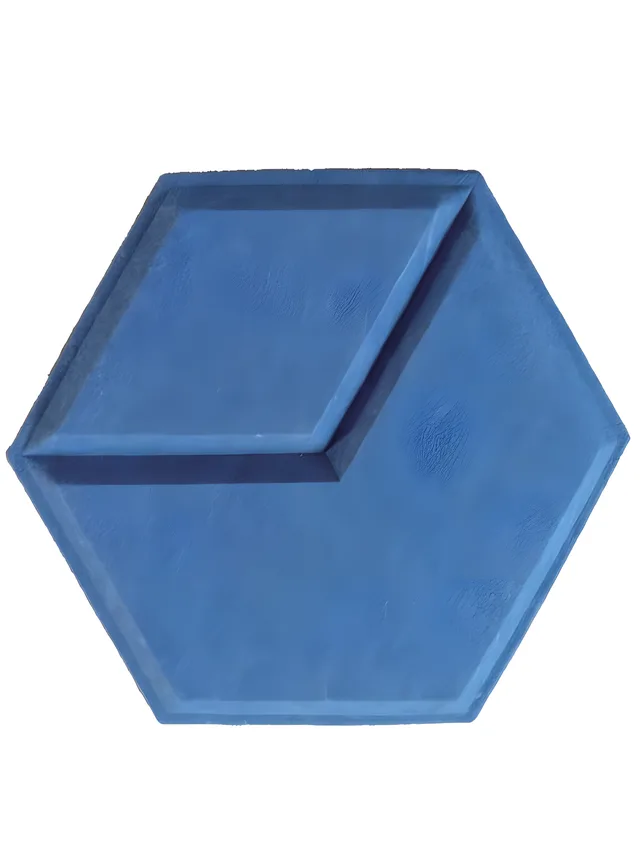

FC-3D025 : Hexagon 500 × 500 mm — FC-3D025 500 × 500 mm · th. 20 mm Hexagon

FC-3D026 : Hexagon 160 × 160 mm — FC-3D026 160 × 160 mm · th. 50 mm Hexagon

FC-3D027 : Hexagon 400 × 400 mm — FC-3D027 400 × 400 mm · th. 38 mm Hexagon

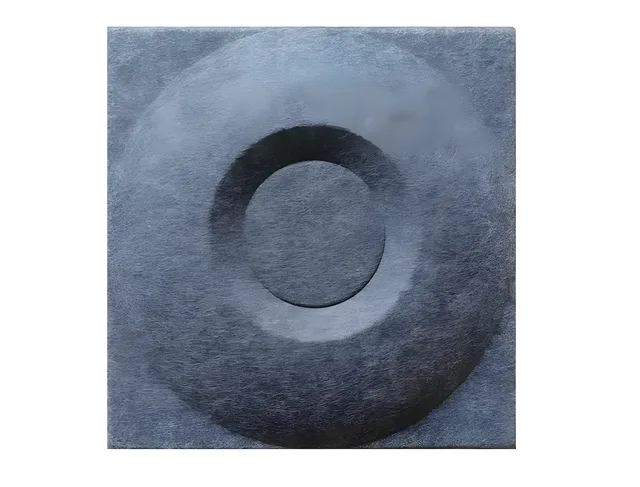

FC-3D028 : Square 300 × 300 mm — FC-3D028 300 × 300 mm · th. 38 mm Square

FC-3D029 : Rectangle 800 × 400 mm — FC-3D029 800 × 400 mm · th. 25 mm Rectangle

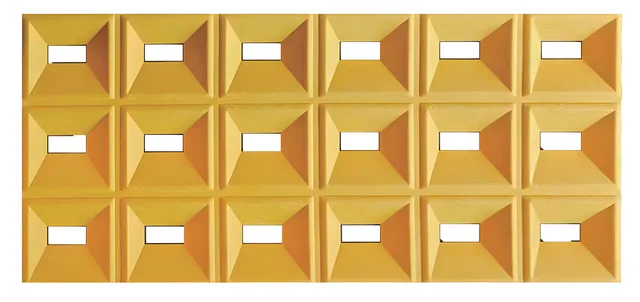

FC-3D030 : Square 157 × 157 mm — FC-3D030 157 × 157 mm · th. 25 mm Square

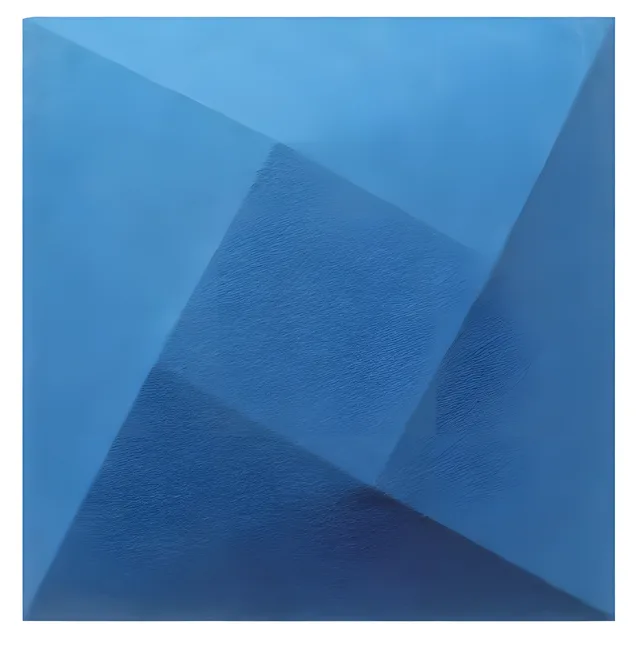

FC-3D031 : Square 300 × 300 mm — FC-3D031 300 × 300 mm · th. 50 mm Square

FC-3D032 : Square 300 × 300 mm — FC-3D032 300 × 300 mm · th. 39 mm Square

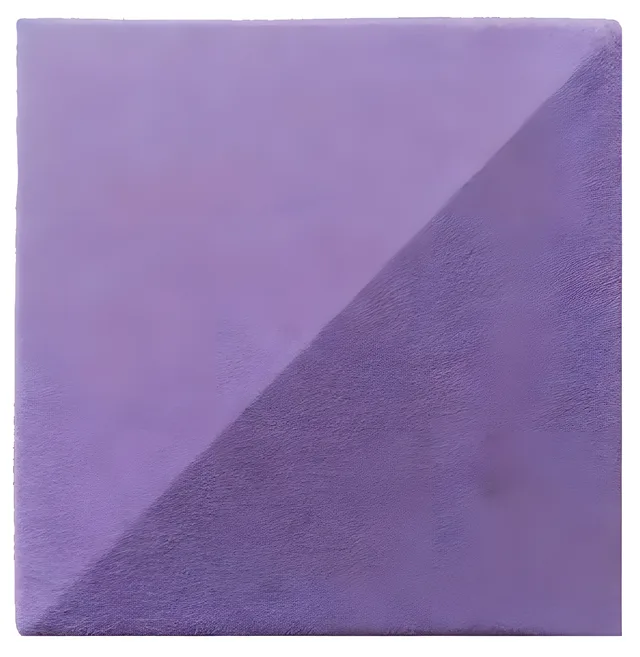

FC-3D033 : Square 300 × 300 mm — FC-3D033 300 × 300 mm · th. 30 mm Square

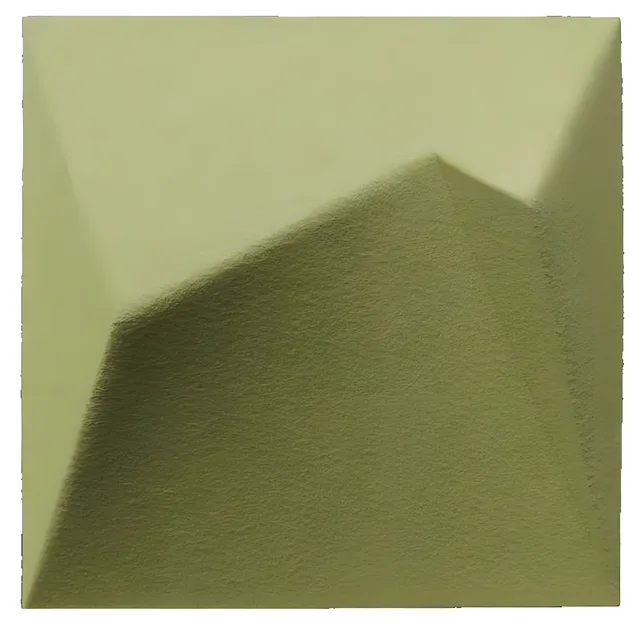

FC-3D034 : Square 300 × 300 mm — FC-3D034 300 × 300 mm · th. 60 mm Square

FC-3D035 : Square 300 × 300 mm — FC-3D035 300 × 300 mm · th. 49 mm Square

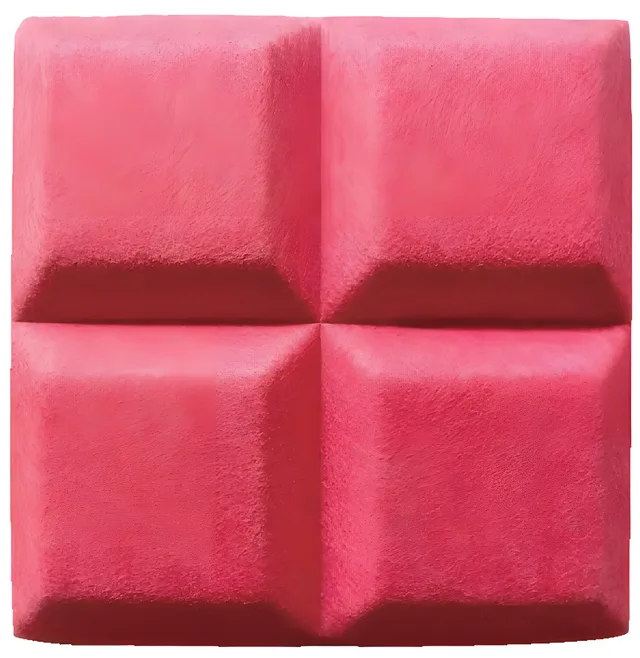

FC-3D036 : Square 300 × 300 mm — FC-3D036 300 × 300 mm · th. 34 mm Square

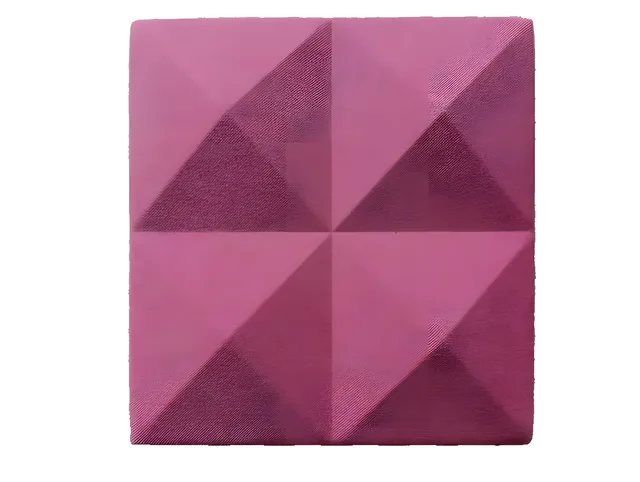

FC-3D037 : Square 300 × 300 mm — FC-3D037 300 × 300 mm · th. 34 mm Square

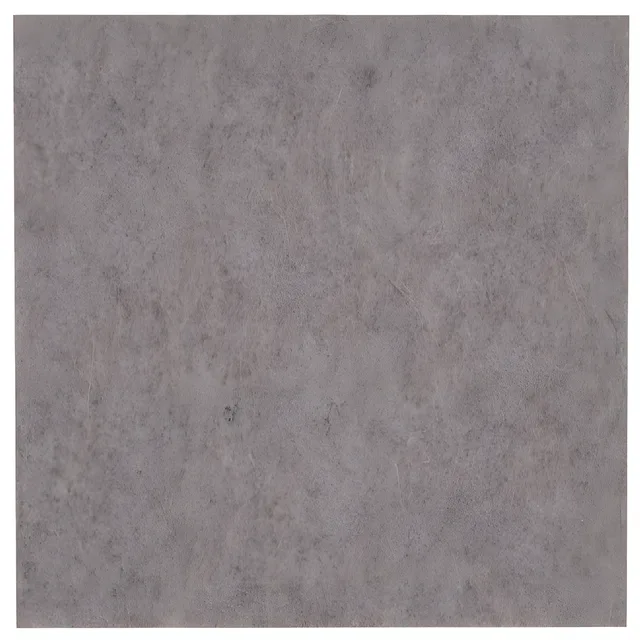

FC-3D038 : Square 500 × 500 mm — FC-3D038 500 × 500 mm · th. 45 mm Square

FC-3D039 : Triangle 345 × 305 mm — FC-3D039 345 × 305 mm · th. 40 mm Triangle

FC-3D040 : Triangle 345 × 300 mm — FC-3D040 345 × 300 mm · th. 40 mm Triangle

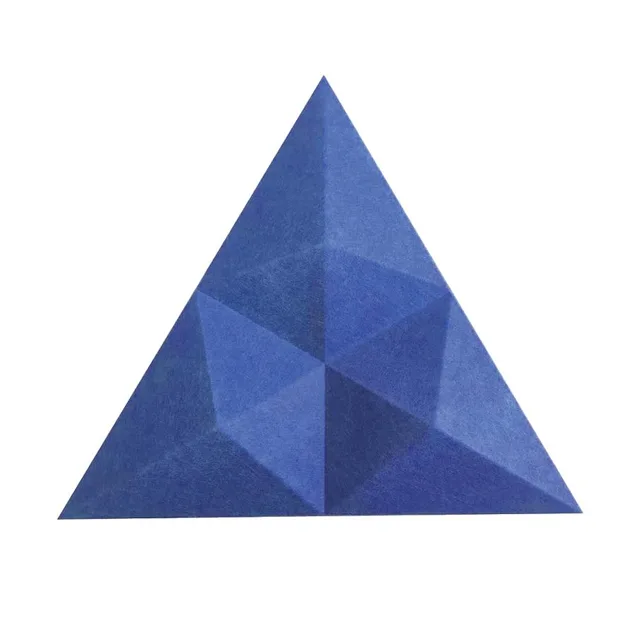

FC-3D041 : Triangle 231 × 400 mm — FC-3D041 231 × 400 mm · th. 50 mm Triangle

FC-3D042 : Triangle 300 × 300 mm — FC-3D042 300 × 300 mm · th. 30 mm Triangle

The collection

When the wall becomes a useful sculpture.

The 3D panel pushes relief to its maximum: several centimetres of volume moulded into the felt, bold shadows, a wall that changes character with the angle and the lighting. Fitted side by side, the modules compose a continuous sculpted surface: a swell of waves, a field of petals, a slope of dunes. It is the signature element par excellence, the one that defines a place from the moment you walk in.

Acoustically, the collection combines two actions. Absorption first: the porous felt is the same as our wall panels, measured at NRC 0.80 and 0.85 depending on thickness. Diffusion next: the volumes scatter the residual sound in every direction instead of reflecting it like a mirror. Between two parallel walls, that is what eliminates the flutter echo a flat treatment sometimes leaves behind.

This absorption-diffusion pairing is the one studios and music rooms look for. In a reception, a restaurant or an open-plan office, it simply gives a more natural sound: the room is calm without being dull.

The twelve modules

Organic, geometric, textured.

References 3D-01 to 3D-12 fall into three families. The organics: deep waves, dunes, petals and foliage in volume, with continuous curves that compose wall-sized landscapes. This is the family of receptions and hospitality spaces, spectacular without being aggressive. The geometrics: pyramids, domed bubbles, recessed cubes, with a clean, regular rhythm, perfect for a contemporary brand wall or a tech space. Finally the textured: crumpled folds and raised labyrinths, more abstract, working the material like draped fabric.

Every module is made in the 36 shades of the colour chart, and the layout makes the style: a single module repeated in monochrome for rigour, a two-tone chequerboard for graphic impact, a three-shade gradient for movement. Plain modules can also be inserted into the composition to give the relief room to breathe and keep the budget in check.

For a softer relief, see the embossed acoustic panels; for a linear rhythm, the fluted acoustic panels. The three collections share the colour chart and combine on the same project.

Cost my 3D wall

sculpted modules in the catalogue

families: organic, geometric, textured

felt shades available

0.85

NRC absorption coefficient

In real spaces

3D panels : the collection in pictures.

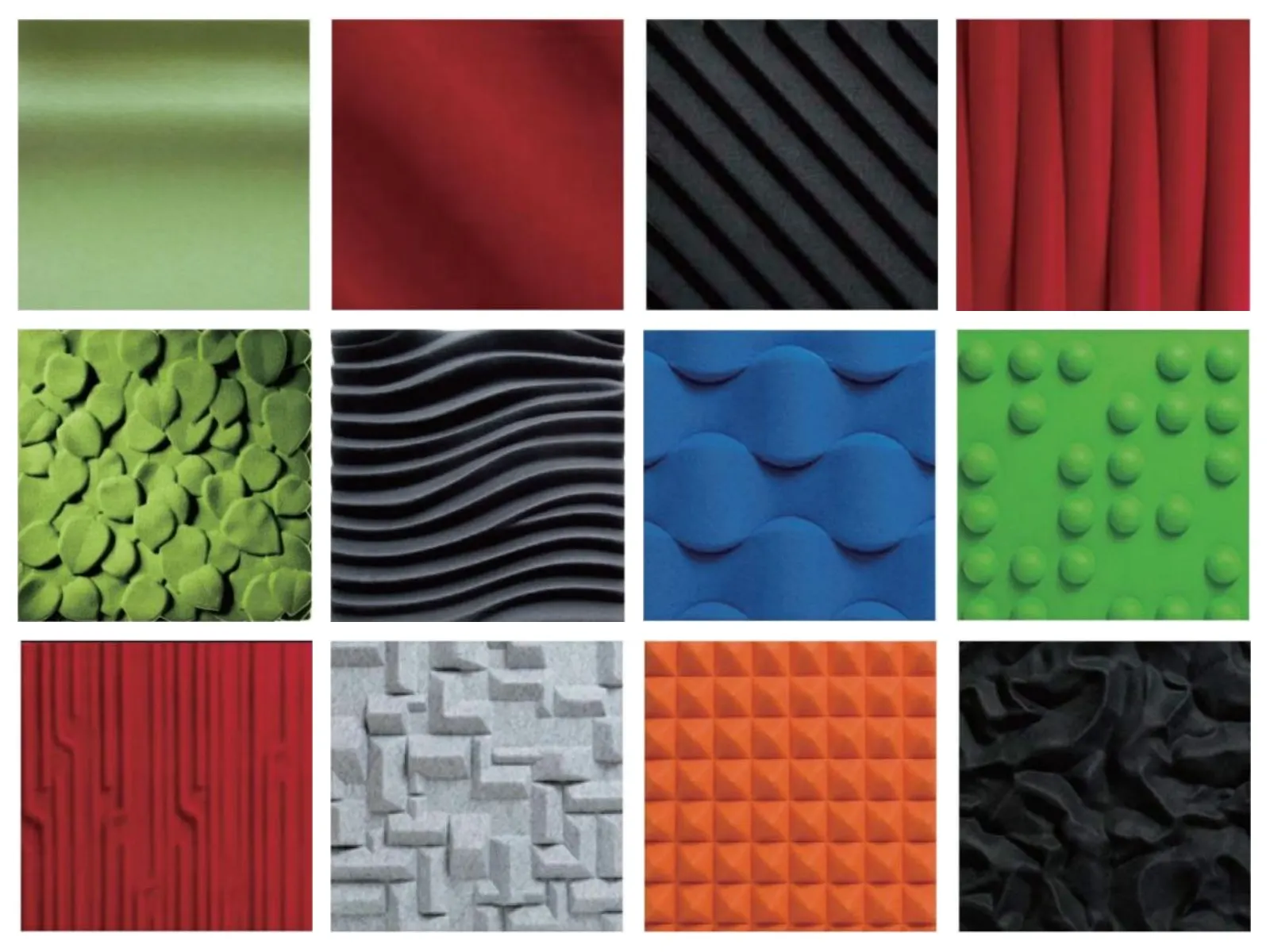

Office with a 3D acoustic panel wall with a petal pattern

Where to fit it

The walls that have to leave a mark.

You choose 3D for the effect: one well-placed span is enough to define an entire place.

Reception & lobby

The signature wall: the swell of waves or the field of petals people remember the place by, and a lobby that finally stops ringing.

Creative room

An environment that stimulates without the hubbub: the relief feeds the eye, the felt absorbs the ideas flying around.

Music room & auditorium

Absorption plus diffusion: the pairing that avoids both echo and a lifeless sound, for natural listening.

Retail & showroom

A 3D wall in your brand colours becomes window decor and a photo backdrop for your customers.

The install

A layout plan, some modules, half a day.

A 3D wall goes up module by module, like large-format tiling. On a flat, sound surface, bonding with mounting adhesive is enough: each module is light, lines up against a chalk line and presses into place in seconds. On an irregular surface, or for the deepest modules, screw fixing secures the whole, the screw heads disappearing into the recesses of the relief.

Everything comes down to the layout plan, supplied with the order: fitting sequence, orientation of each module (many references change character when rotated a quarter turn), distribution of the colours. A careful in-house team fits a signature wall in half a day; for a major span at height, we can point you to an installer.

Full span or framed feature surrounded by plain felt, the result is approved before manufacturing: composition, shades and layout plan on a proof, as with all our made-to-measure work.

Request my free quote

Composing well

Getting a 3D wall right: lighting first.

A 3D wall lives on its light. The same field of petals looks flat under a diffuse ceiling light and becomes spectacular under raking light: spots angled from the ceiling, an LED strip at the top or bottom of the span, side light from a window. If you are preparing a project, think about the lighting at the same time as the layout: it decides the perceived depth. We build it into our advice from the quote onwards.

Second lever, the orientation of the modules. Most references change character when rotated a quarter turn: horizontal waves stretch the wall, vertical ones lift it; aligned pyramids bring rigour, staggered ones bring movement. The supplied layout plan fixes the orientation of every module, so the install delivers exactly the result approved on the mock-up.

Last piece of advice, the framing: a 3D feature of four to six square metres, framed with plain felt in the same shade, concentrates the effect and the budget right where the eye lands. The full floor-to-ceiling span remains the signature option for lobbies; the framed feature is the highly effective one for meeting rooms and retail spaces.

Composition, orientation, lighting: everything is approved on a render before manufacturing. You see your finished wall before you order.

Certified measurements

The exact figures, measured in the lab.

Absorption measured by SGS in a reverberation room (ISO 354, type E mounting with a 200 mm air cavity). Test reports are supplied with every quote.

Frequency	9 mm panel	12 mm panel
125 Hz	0,39	0,41
250 Hz	0,69	0,77
500 Hz	0,95	0,92
1000 Hz	0,66	0,72
2000 Hz	0,84	0,92
4000 Hz	0,93	0,99
NRC (overall rating)	0,80	0,85
Surface weight	1,83 kg/m²	2,09 kg/m²

Alpha-s absorption coefficient per octave band. NRC = average at 250, 500, 1000 and 2000 Hz (SGS reports CZIN2502000039CM01 and CZIN2502000038CM01).

B-s1,d0

Fire Europe: B-s1,d0

EN 13501-1:2018 (SBI EN 13823 + EN ISO 11925-2 tests): low contribution to fire, s1 smoke, no flaming droplets. Valid for walls, ceilings and free-standing partitions.

Class A

Fire USA: Class A

ASTM E84-2024: flame spread index 5 (Class A is 0 to 25), smoke developed index 300. The level required for interior walls and ceilings.

A+

Indoor air: A+

VOC emissions tested to ISO 16000: formaldehyde and TVOC not detected on day 7. French A+ label (decree 2011-321), certificate valid until 04/2029.

GRS

Recycled PET, certified

Felt made from recycled PET bottles, spun then heat-pressed. Production audited to FSC and GRS (Global Recycled Standard), tested by SGS, Intertek and TÜV.

The wall people remember, costed within 48 h.

Dimensions, module family, mood: we come back with a composition, a render and a free quote.

Request my free quote

The collections

Nine collections, from plain felt to 3D relief.

Every photo shows a real product from our collections. Everything comes in 55 felt colours, 9 or 12 mm thick, and can be printed with your artwork.

Wall clad with carved acoustic panels behind a wooden dining table

Carved patterns

15+ patterns · 1200 × 2800 mm

Carved wall panels: lines, chevrons, arches and weaves, in large 1200 × 2800 mm formats.

Explore the collection →

Terracotta embossed acoustic panel with a woven relief pattern

Embossed textures

9 textures · ref. EM-001 to EM-009

Nine embossed textures (scales, waves, weave) that catch the light and give the wall real depth.

Explore the collection →

Lounge with an olive green fluted acoustic panel wall

Fluted waves

8 profiles · 1200 × 2400 mm

Wave and flute profiles (BW and BL ranges): a ribbed fabric look, in wall strips 2400 mm high.

Explore the collection →

Printed acoustic wall with a cactus mural in a meeting area

Printed panels

HD printing · any artwork

Our speciality: your artwork (mural, photo, pattern, logo) printed in high definition on the felt.

Explore the collection →

Request a free quote

What the order includes

Approved render, numbered modules, complete file.

A 3D wall is not ordered from a catalogue: every project goes through a composition render (modules, orientations, colours, recommended lighting) that you approve before manufacturing. Samples from the colour chart can round out the decision, to judge the shade in real conditions.

On delivery, the modules arrive numbered according to the layout plan, with the fitting direction of each one, the fixing recommendations and the technical file: EN 13501-1 B-s1,d0 fire classification report and laboratory-measured absorption data sheet. The install follows the plan like a documented puzzle, with no improvising.

Frequently asked questions

3D panels: your questions.

What is a 3D acoustic panel?

It is a wall module in PET felt sculpted in volume: deep waves, petals, pyramids, dunes, bubbles. Fitted side by side, the modules compose a relief wall that plays with the light like a sculpture. The felt remains the absorbent material of our wall panels: NRC 0.80 to 0.85, with an added diffusion effect created by the volumes. Twelve references make up the collection, ref. 3D-01 to 3D-12.

Does a 3D panel absorb better than a flat one?

It absorbs just as much and diffuses more. Absorption comes from the porosity of the felt, identical to our flat panels (NRC 0.80 to 0.85 measured). The volumes add a second action: they break up the waves by scattering them in every direction, which prevents sharp echoes between parallel walls. This mix of absorption plus diffusion is sought after in music rooms and spaces where sound quality matters.

Which modules make up the 3D collection?

Twelve references, 3D-01 to 3D-12, in three families: the organics (deep waves, dunes, petals, foliage in volume), the geometrics (pyramids, domed bubbles, recessed cubes) and the textured (crumpled folds, raised labyrinths). Every module comes in the 36 shades of the colour chart and combines with the others on a single layout plan.

How are 3D modules installed?

Module by module, bonded onto a flat surface or screwed depending on weight and substrate. That is the strength of the format: you compose the layout like a chequerboard, playing with the orientation of the modules and the colours (two-tone chequerboard, gradient, continuous wave). A layout plan comes with every order, and the install remains within reach of a careful in-house team.

Are 3D panels suitable for public buildings?

Yes. The modules are moulded in the same felt certified EN 13501-1 B-s1,d0 as the rest of the range: low contribution to fire, very little smoke, no flaming droplets. The classification report comes with every order, ready for the safety inspection.

How large an area should a 3D wall cover?

A 3D wall works as a full span or as a framed feature. As a full span, floor to ceiling, it becomes the signature element of the place: reception, head of a room, stage wall. As a feature of a few square metres framed with plain felt, it creates a focal point on a contained budget. Either way, we cost it from your dimensions, free of charge and within 48 h.

A successful acoustic treatment goes unheard. This one, on top of that, sculpts itself, casts shadows and becomes the decor: twelve modules to turn a wall into a centrepiece.

The absorption of felt, the diffusion of volume: the best of both worlds.

Felt colour chart · 55

55 colours, available across the whole collection

Every reference in this collection comes in the 55 colours of the PET felt chart, with free mixing between modules.

FC 100Neutrals & sands

FC101

FC102

FC103

FC104

FC105

FC106

FC107

FC108

FC109

FC110

FC111

FC112

FC 200Suns & greens

FC201

FC202

FC203

FC204

FC205

FC206

FC207

FC208

FC209

FC210

FC211

FC212

FC 300Powders & purples

FC301

FC302

FC303

FC304

FC305

FC306

FC307

FC308

FC309

FC310

FC311

FC312

FC 400Greys & blues

FC401

FC402

FC403

FC404

FC405

FC406

FC407

FC408

FC409

FC410

FC411

FC412

FC 500Deeps & reds

FC501

FC502

FC503

FC504

FC505

FC506

FC507

On-screen shades are indicative: felt is a melange material, physical samples prevail (sent with your quote on request).

2026 catalogue

The complete collection in an 18-page PDF.

36-colour chart, pattern boards, dimensioned ceiling systems, desk screens and certified performance data: everything you need to specify or price your project.

Download the catalogue (PDF)

Your made-to-measure 3D wall.

Dimensions, the family you have in mind, a photo of the wall: we come back within 48 h with a composition, a layout plan and a free quote, DDP delivery in 10 to 15 days.

Request my free quote
