Carved acoustic panels: the sculpted wall.
The Carved Patterns collection dresses our acoustic wall panels with a design carved into the surface of the felt: lines, chevrons, arches, weaves. In large 1200 × 2800 mm strips, the pattern runs from floor to ceiling, and the absorption stays whole: NRC 0.85, fire-certified for public buildings.
The collection
A design carved into the material, not a decor stuck on top.
The carving works the felt like a bas-relief: a router cuts the pattern 2 to 4 mm into the surface, without going through the absorbent mass. The result looks nothing like a print or a veneer: the design is part of the panel, with real edges, real shadows, a relief that changes with the hour and the lighting. Raking light sculpts it; soft light melts it back into the material.
That is what sets the collection apart from a merely decorated panel: nothing can flake, peel off or yellow, because the finish is the felt itself. And since the carving only removes a fraction of the thickness, the measured performance remains that of our wall panels: NRC 0.80 at 9 mm, NRC 0.85 at 12 mm, SGS measurements in a reverberation chamber.
The collection belongs to the family of our acoustic wall panels: same material, same install, same certifications. It is the most architectural variation of the range, to be compared with the embossed reliefs, softer, or the fluted slats, more rhythmic.
The patterns
From the discreet line to the spectacular weave.

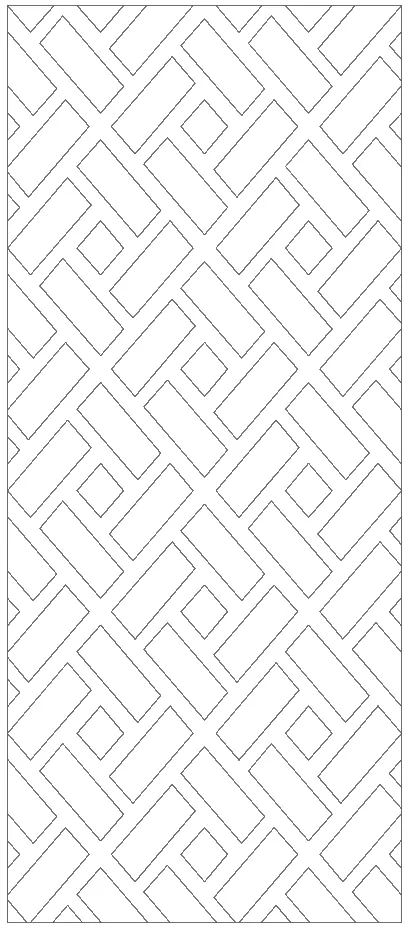

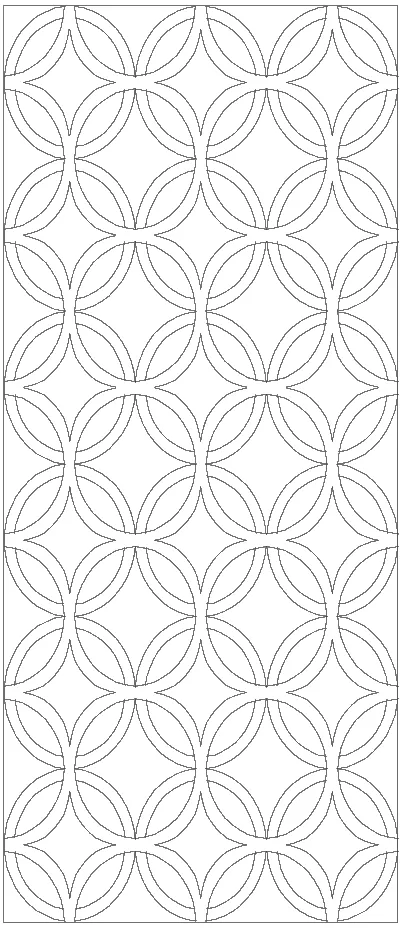

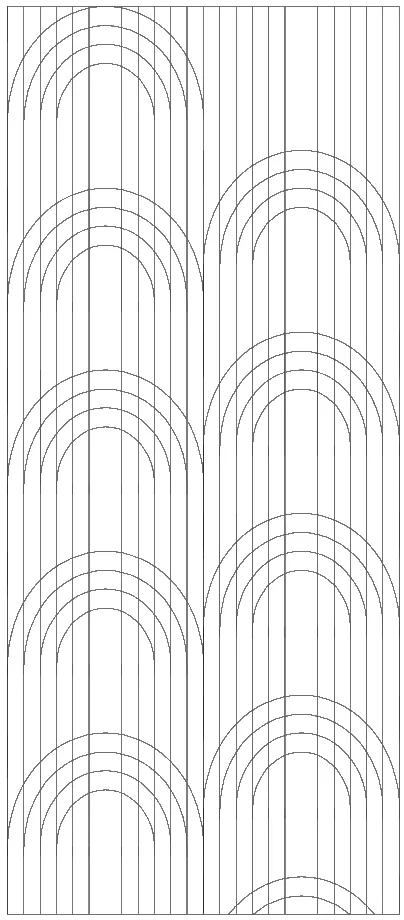

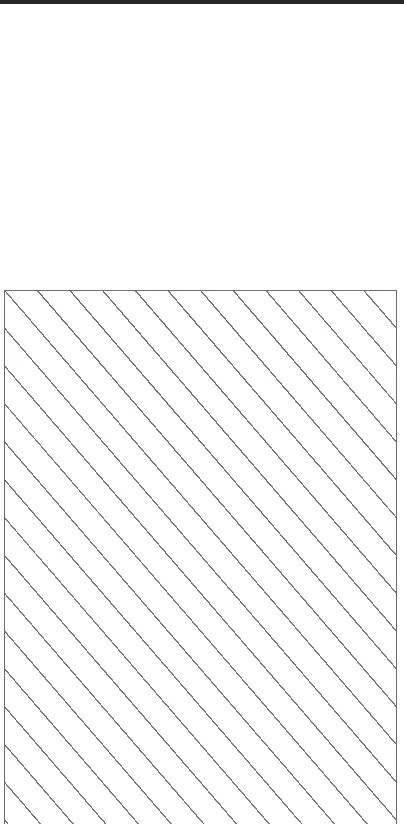

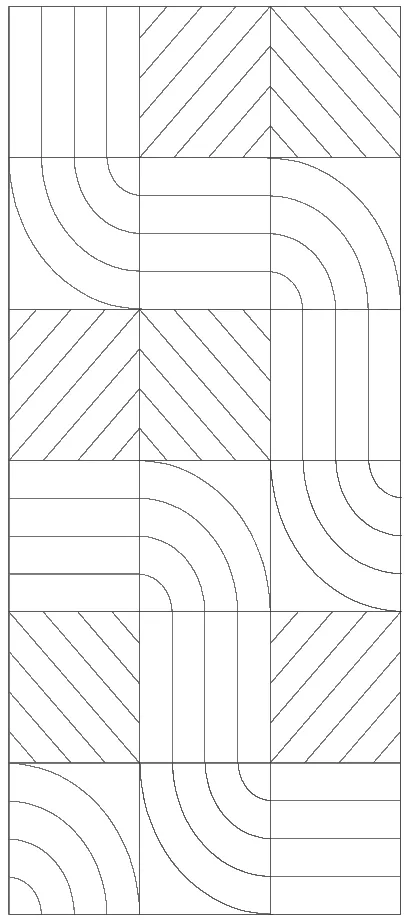

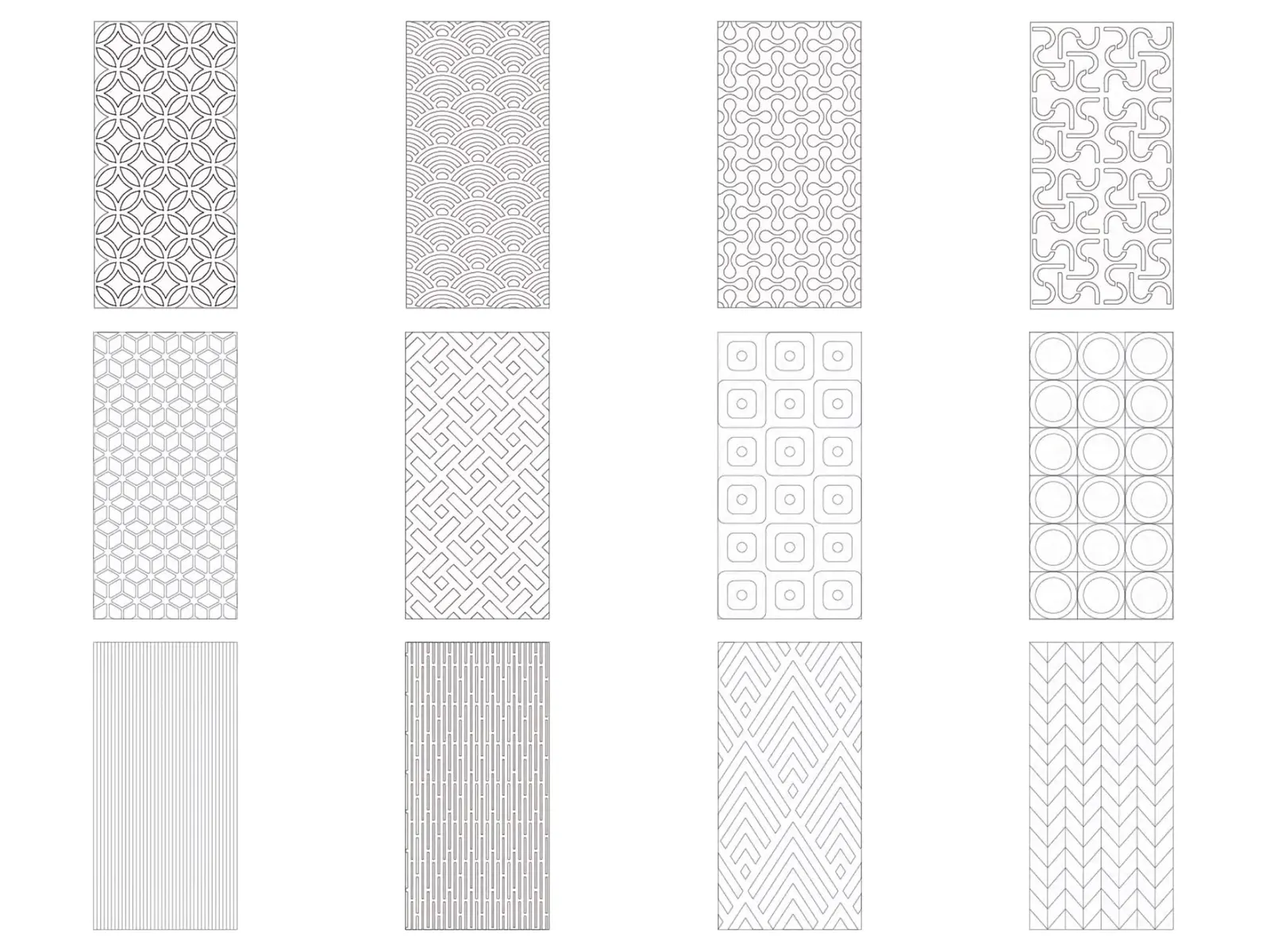

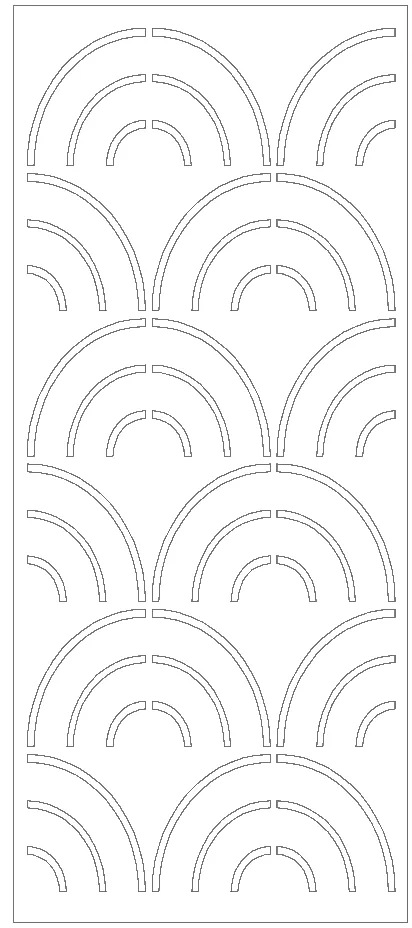

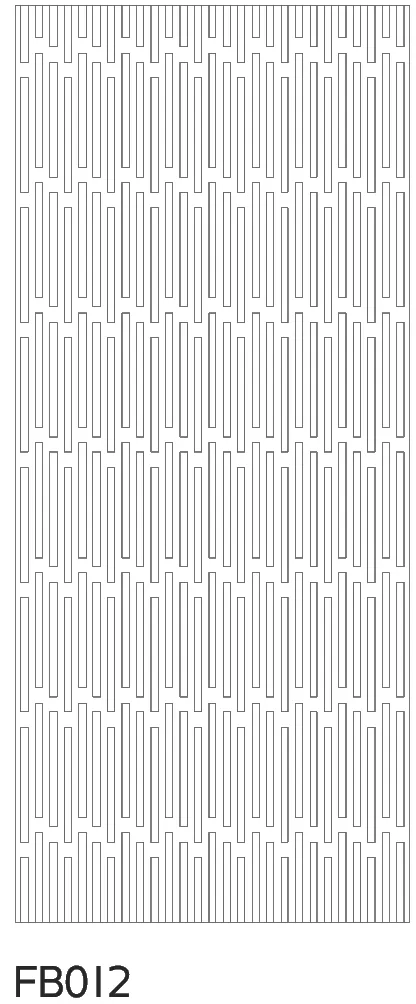

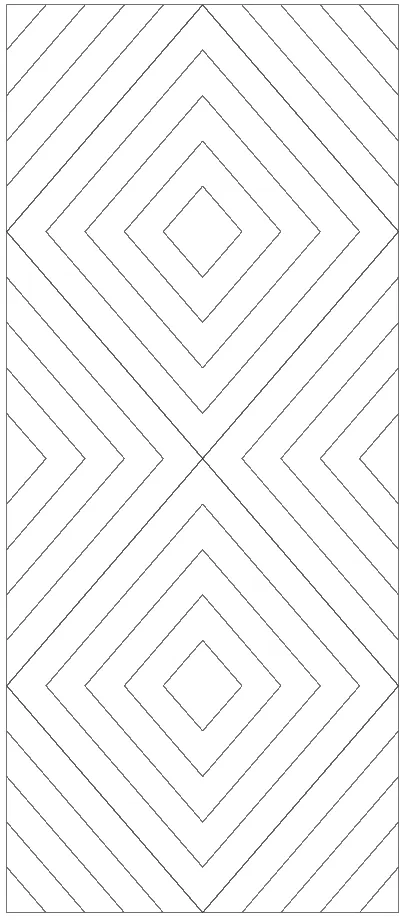

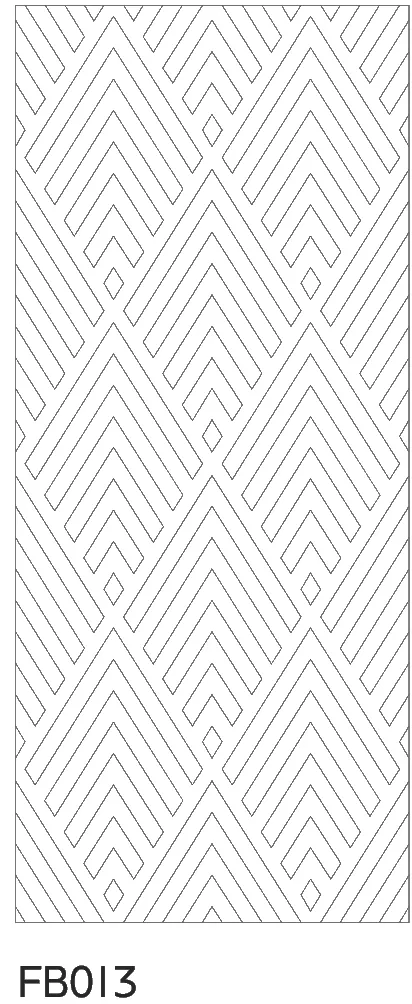

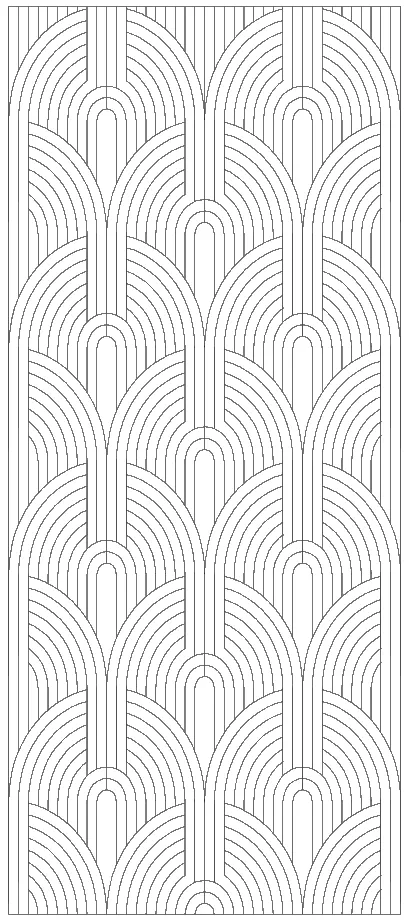

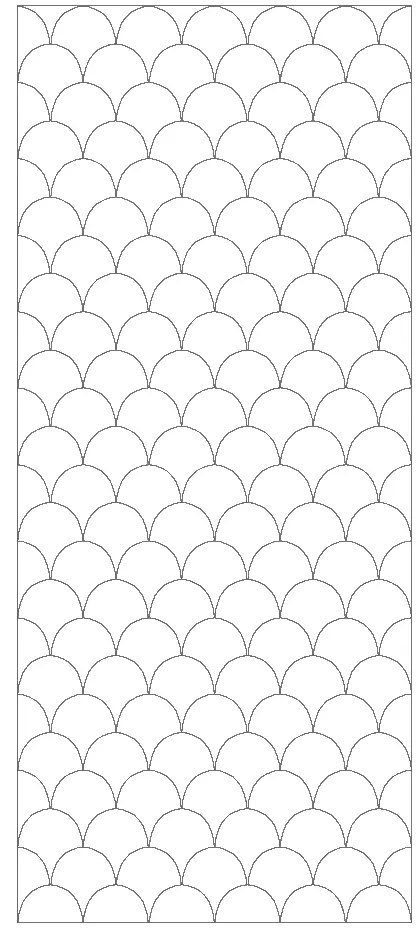

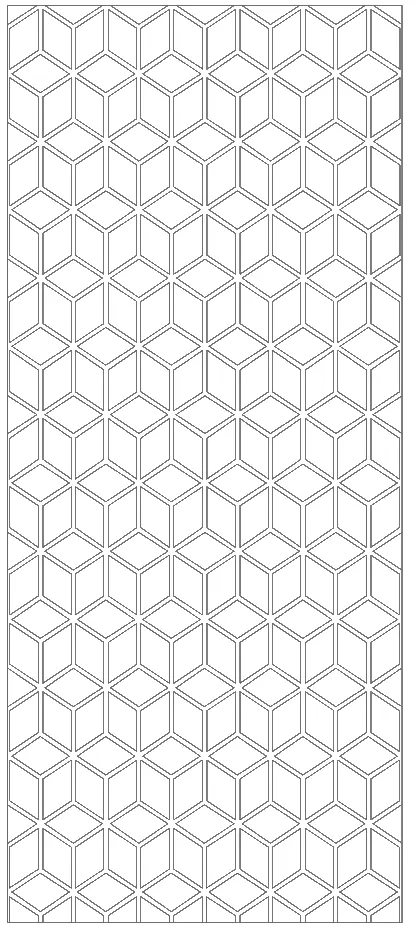

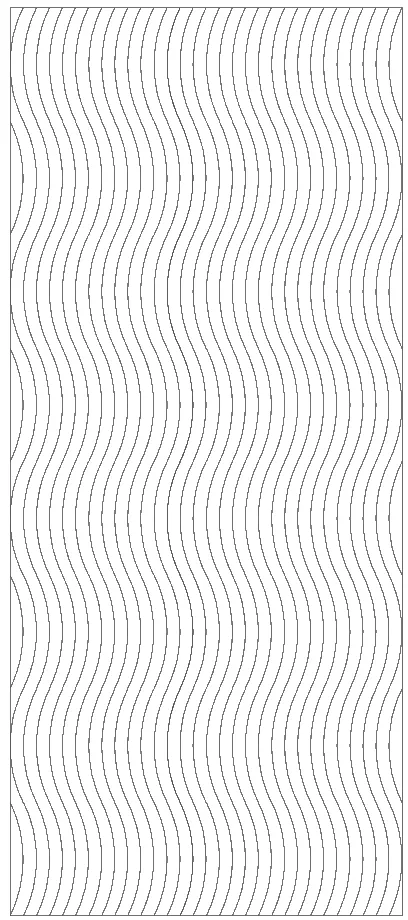

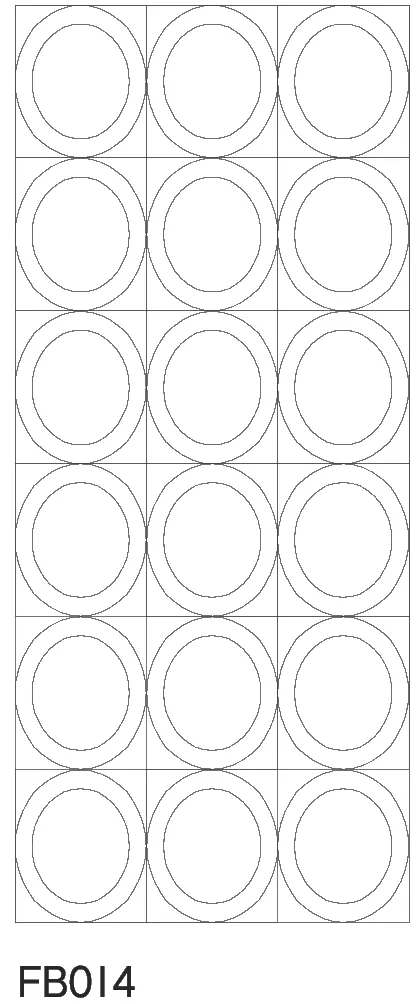

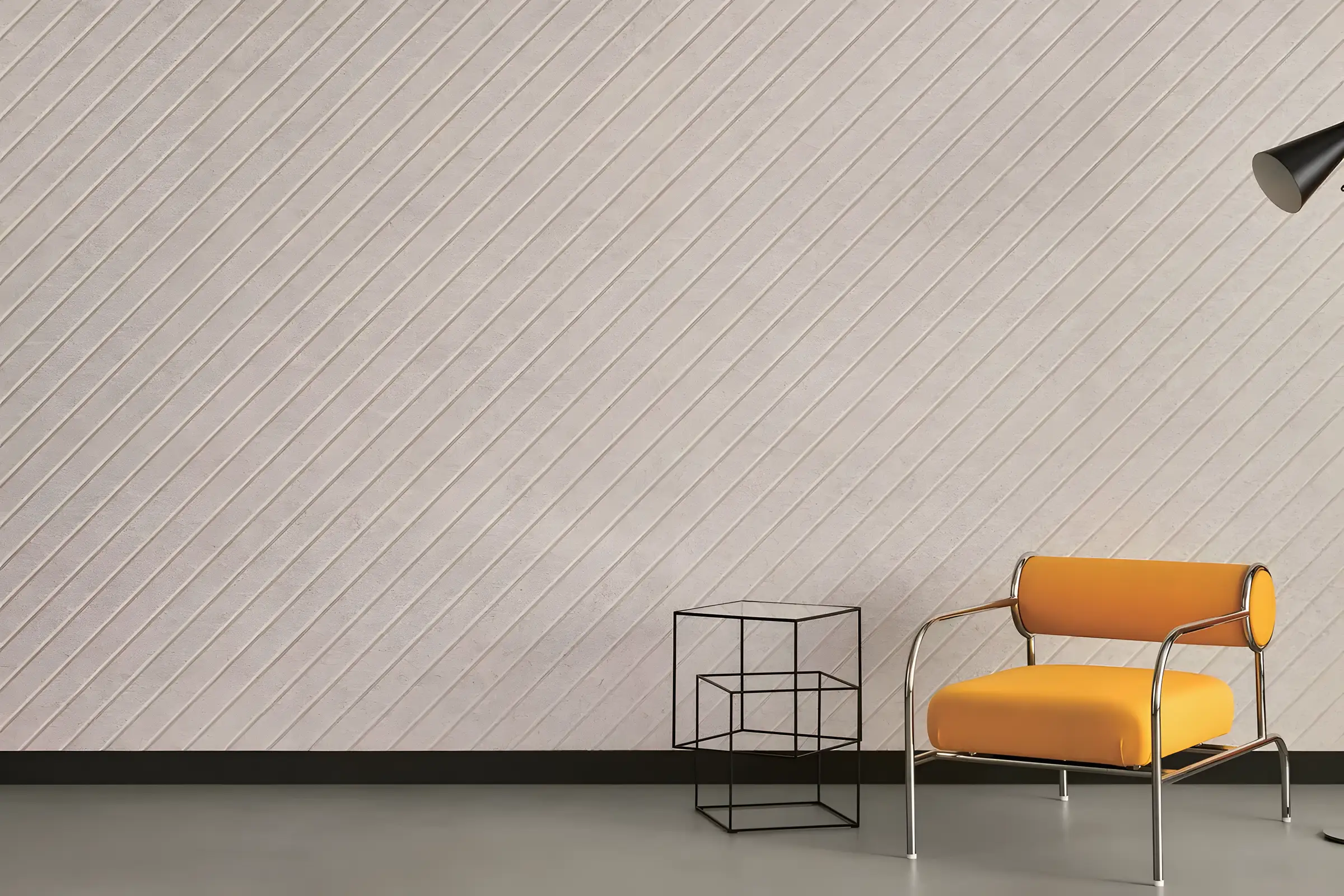

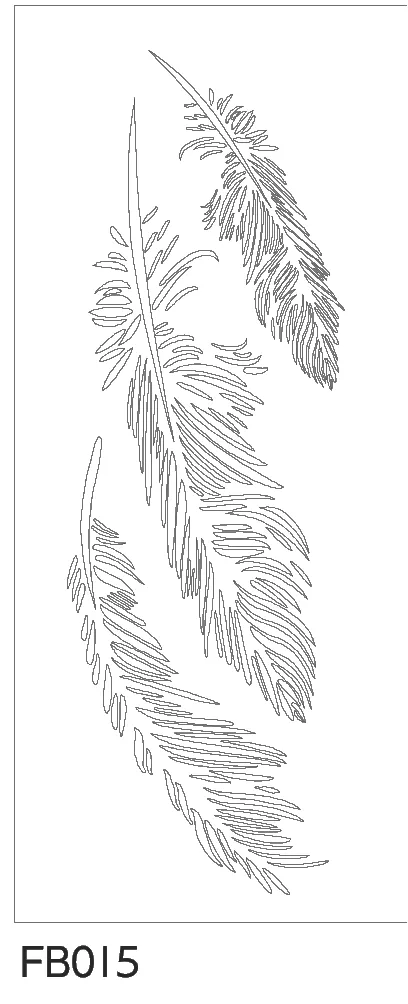

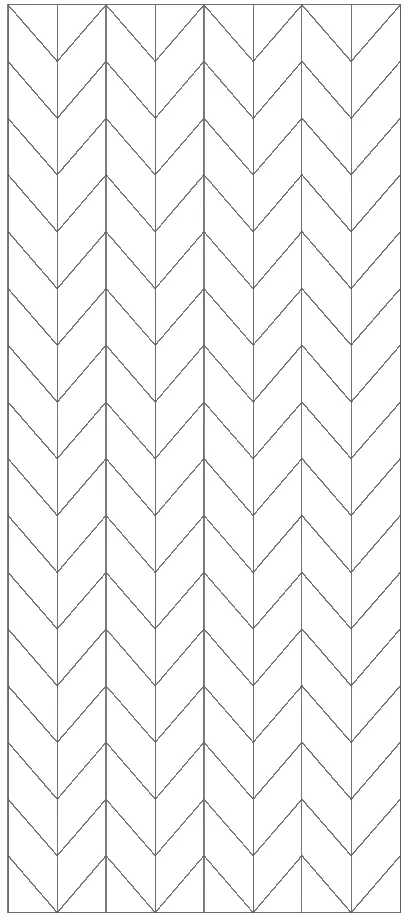

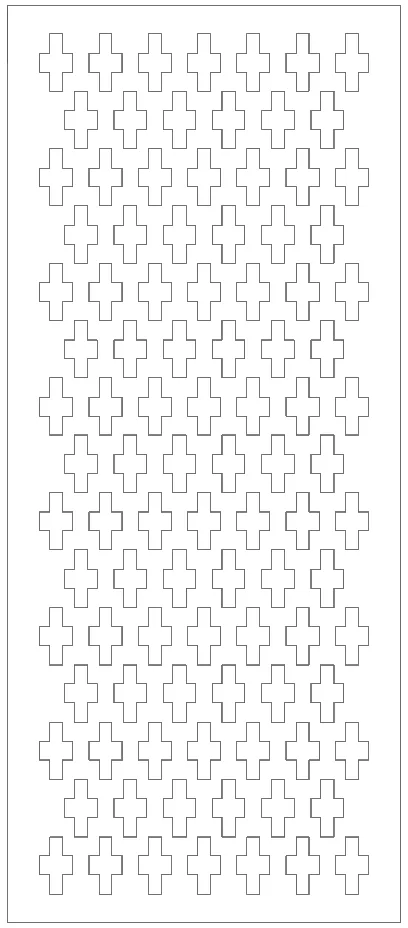

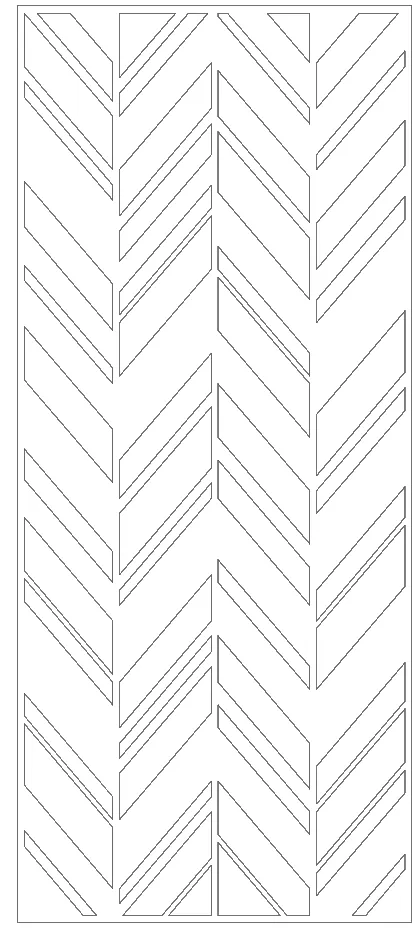

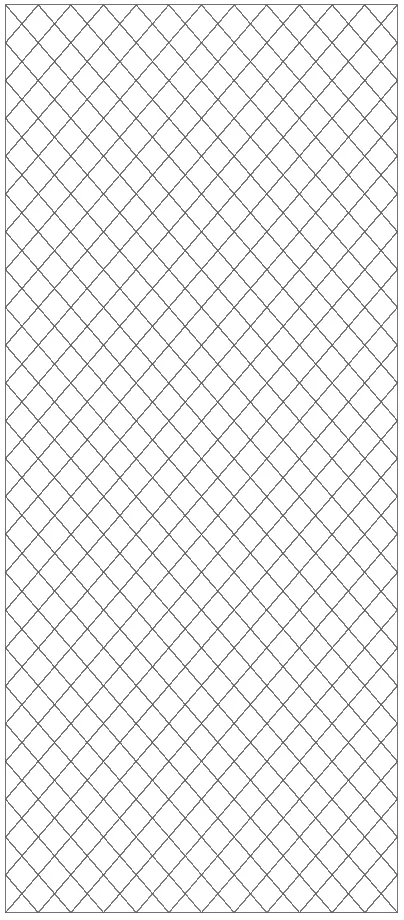

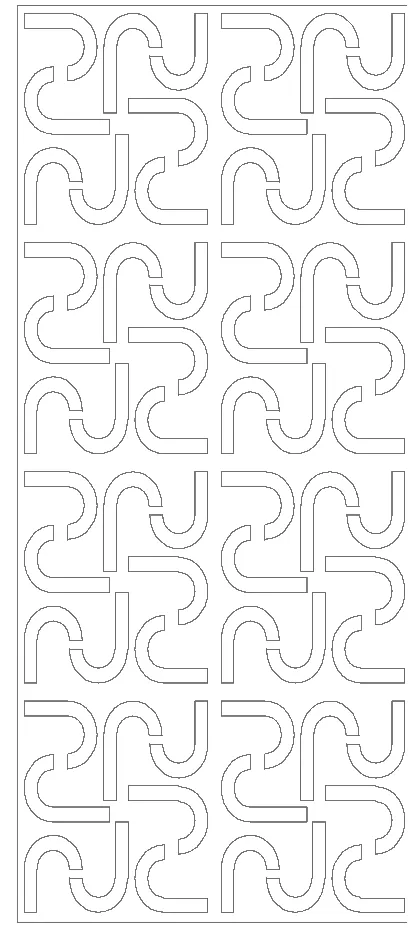

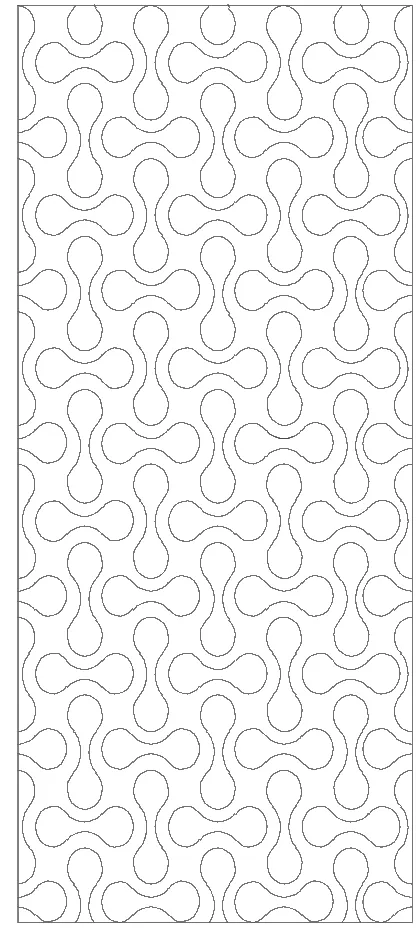

Around fifteen patterns make up the catalogue, ranked from the most discreet to the most assertive. The vertical lines, fine or wide, elongate the room and remain the most sober choice: from a distance, the wall reads like stretched fabric. The diagonals and chevrons energise a corridor or a reception wall. The bricks and weaves give a very tactile material effect, close to a coursed masonry wall. The arches and curves, finally, sign an Art Deco or organic decor that becomes the focal point of the space.
Each pattern is drawn to match from one strip to the next: on a six-metre wall, the design runs without a break or a forced symmetry. The light shades of the colour chart (chalk, greige, sand) bring out the shadows of the carving; the deep shades (charcoal, teal, terracotta) give a velvety finish where the pattern reveals itself as the light changes.
Does your project call for an exclusive design? We carve your drawing (a brand pattern, an architect's motif, an echo of the facade) with a proof approved before production, just like our made-to-measure printed panels.
15+
carved patterns in the catalogue
2-4mm
carving depth
36
felt shades available
2800mm
height of the seamless strips
In real spaces

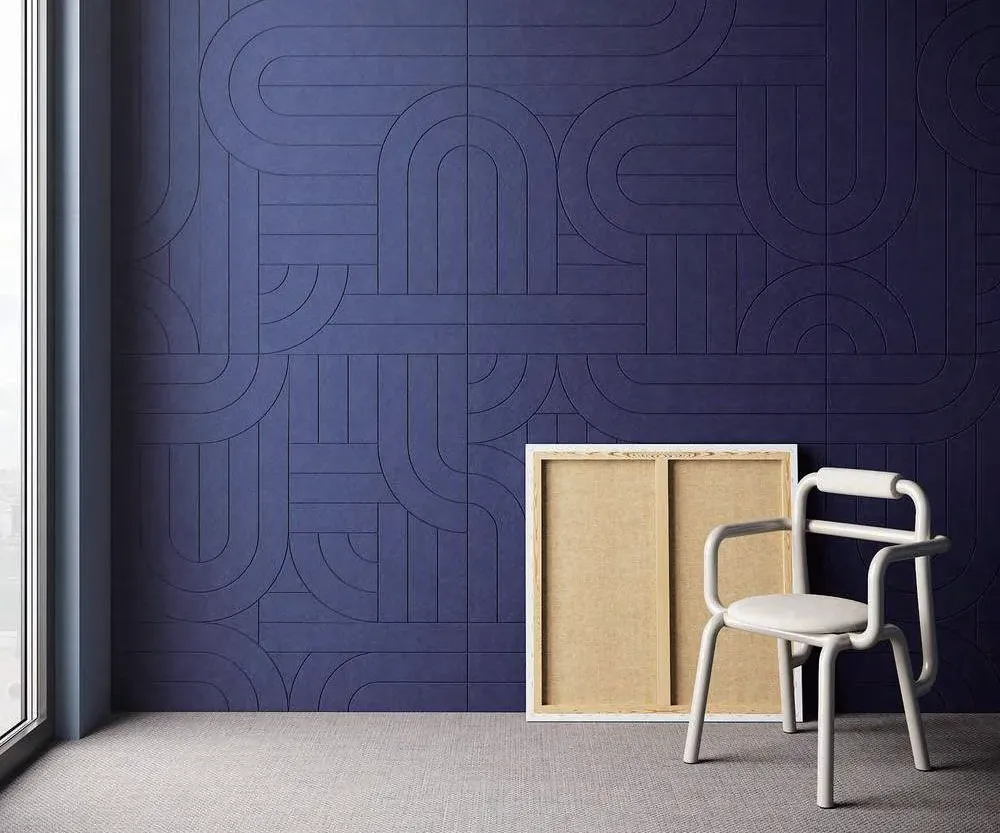

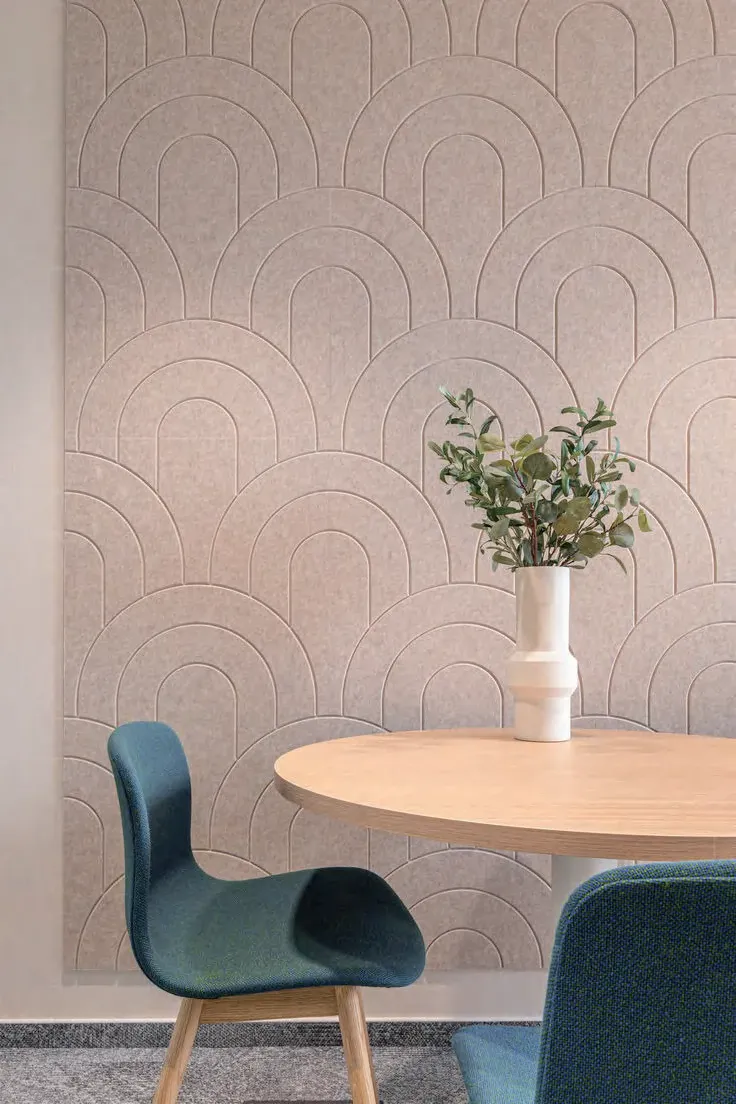

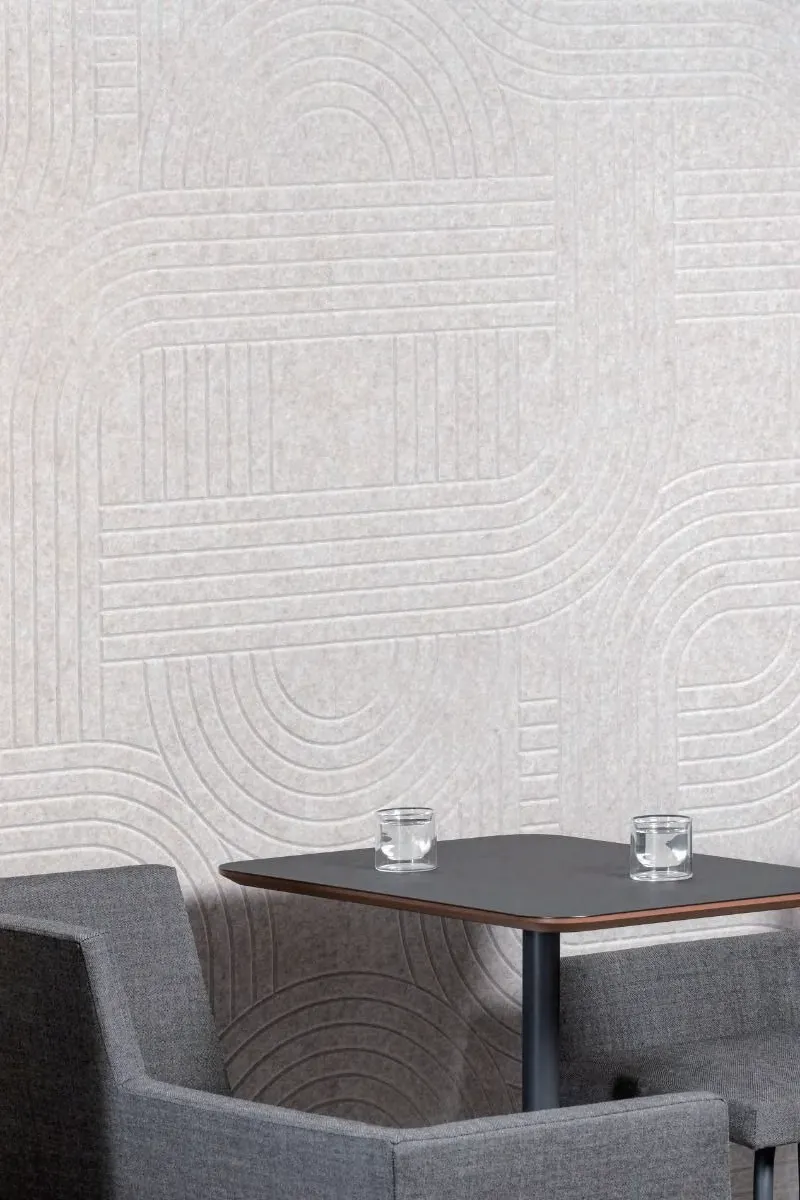

Carved patterns : the collection in pictures.
Where to fit it
The walls that deserve a relief.
Carving is chosen for the most visible walls, where the material has to be felt.
Reception wall
A carved strip from floor to ceiling structures the entrance and sets the tone from the front door, while calming the echo of the lobby.
Restaurant dining room
A large woven or arched span dresses the room like contemporary panelling, and brings the background chatter down.
Meeting room
The polished camera backdrop on video calls: a discreet lined pattern absorbs the voice without pulling attention away.
Corridor & circulation
Diagonals and chevrons give rhythm to the long runs, stand up to rubbing and do not flake.
The install
Strips that fit like flexible panelling.
The large format is the practical asset of the collection: one 1200 × 2800 mm strip covers 3.4 m² in a single piece, without a horizontal joint. Fitting is done by bonding with mounting adhesive on a flat, clean surface: you mark a plumb line, fit the first strip, then each following strip comes to match the pattern. The felt weighs around 2 kg/m²: a full strip is handled by two people, recuts with a utility knife and adjusts around sockets and corners.
On an irregular wall, or for an even more sculptural finish, screw fixing with spacers offsets the panels by 20 to 40 mm: the air gap extends absorption towards the low frequencies and the cast shadow doubles the relief of the carving. It is the mounting we recommend for signature reception walls.
Every order ships with its layout plan, the fitting direction of the patterns and the recommendations suited to your surface. The general guide is in the article how to mount an acoustic panel.
Getting it right
Choosing your pattern: three questions are enough.
First question: from what distance will the wall be seen? Up close (a corridor, a bench against the wall), the fine patterns reveal their detail and reward the eye; the large weaves, on the other hand, are hard to read at less than a metre. From a distance (a lobby, a large room), reverse the logic: fine lines melt into a plain texture, while arches and wide chevrons keep their design at ten metres.
Second question: what light does the wall receive? Raking light (angled spots, a side window) deepens the shadows and doubles the presence of the pattern: the discreet carvings are enough. Diffuse, frontal lighting flattens the relief: in that case choose a deeper pattern or a mid-tone shade that marks the hollows. On this point, one photo of the room is all we need to advise you.
Third question: is the wall the main actor or the backdrop? A signature reception wall carries the assertive patterns and the bold shades. The back wall of a meeting room or a restaurant gains from staying in the background: vertical lines, a mineral shade, and the whole space looks designed without anyone being able to say why.
When in doubt, we settle it with you on a mock-up: every quote can include a render of the pattern at the scale of your wall, before anything is manufactured. You choose on an image, not on a catalogue page.
Certified measurements
The exact figures, measured in the lab.
Absorption measured by SGS in a reverberation room (ISO 354, type E mounting with a 200 mm air cavity). Test reports are supplied with every quote.
| Frequency | 9 mm panel | 12 mm panel |
|---|---|---|
| 125 Hz | 0,39 | 0,41 |
| 250 Hz | 0,69 | 0,77 |
| 500 Hz | 0,95 | 0,92 |
| 1000 Hz | 0,66 | 0,72 |
| 2000 Hz | 0,84 | 0,92 |
| 4000 Hz | 0,93 | 0,99 |
| NRC (overall rating) | 0,80 | 0,85 |
| Surface weight | 1,83 kg/m² | 2,09 kg/m² |
Alpha-s absorption coefficient per octave band. NRC = average at 250, 500, 1000 and 2000 Hz (SGS reports CZIN2502000039CM01 and CZIN2502000038CM01).
B-s1,d0
Fire Europe: B-s1,d0
EN 13501-1:2018 (SBI EN 13823 + EN ISO 11925-2 tests): low contribution to fire, s1 smoke, no flaming droplets. Valid for walls, ceilings and free-standing partitions.
Class A
Fire USA: Class A
ASTM E84-2024: flame spread index 5 (Class A is 0 to 25), smoke developed index 300. The level required for interior walls and ceilings.
A+
Indoor air: A+
VOC emissions tested to ISO 16000: formaldehyde and TVOC not detected on day 7. French A+ label (decree 2011-321), certificate valid until 04/2029.
GRS
Recycled PET, certified
Felt made from recycled PET bottles, spun then heat-pressed. Production audited to FSC and GRS (Global Recycled Standard), tested by SGS, Intertek and TÜV.
A carved wall, costed within 48 h.
Send the dimensions of the wall and the style you are after: we come back with a pattern, a layout plan and a free quote.
Request my free quoteThe collections
Nine collections, from plain felt to 3D relief.
Every photo shows a real product from our collections. Everything comes in 36 felt colours, 9 or 12 mm thick, and can be printed with your artwork.
Fluted waves
8 profils · 1200 × 2400 mm
Wave and flute profiles (BW and BL ranges): a ribbed fabric look, in wall strips 2400 mm high.
Explore the collection →
3D panels
12 modules · réf. 3D-01 à 3D-12
Sculpted volume modules (waves, petals, pyramids) that turn a whole wall into an acoustic feature.
Explore the collection →
Printed panels
Impression HD · visuel libre
Our speciality: your artwork (mural, photo, pattern, logo) printed in high definition on the felt.
Explore the collection →What the order includes
From colour chart to fire report, everything is supplied.
Before ordering, you can receive samples from the colour chart to approve the shade under your own lighting: the colour of a felt shifts between the cool light of an office floor and the warm ambience of a restaurant. The quote then details each strip, its exact dimensions and its pattern, with the render at scale if you asked for one.
Delivery includes the numbered layout plan, the fitting direction of the patterns, the fixing recommendations suited to your surface, plus the complete technical file: the EN 13501-1 B-s1,d0 fire classification report and the measured absorption data sheet, ready for an inspection body or a safety committee. Each panel arrives protected, labelled to match the plan, ready to fit.
Frequently asked questions
Carved patterns: your questions.
What is a carved acoustic panel?
It is a PET felt wall panel with a pattern carved into its surface: vertical lines, chevrons, arches, bricks or weaves. The carving cuts into the surface without going through the absorbent mass, so the panel keeps its full performance (NRC 0.80 to 0.85) while offering the relief and depth of an architectural wall covering. It is a finish of our wall panels, not a separate product: same felt, same install, same fire certification.
Which patterns are available?
Around fifteen patterns in the catalogue, from the most discreet to the most graphic: fine or wide lines, diagonals, chevrons, bricks, weaves, diamonds, Art Deco arches, organic curves. Each pattern is carved continuously on 1200 × 2800 mm strips that match up from one strip to the next: the design runs across the full width of the wall without a break. And if your project calls for an exclusive pattern, we carve it from your drawing, approved on a proof before production.
Does the carving reduce acoustic absorption?
No. The carving removes 2 to 4 mm from the surface of a panel that is 9 or 12 mm thick: the porous mass that absorbs the sound stays intact. Laboratory measurements give the same values as plain felt, NRC 0.80 at 9 mm and 0.85 at 12 mm. The relief even brings a slight bonus: it breaks grazing reflections and diffuses part of the sound energy.
Which formats and colours for carved panels?
The signature format of the collection is the large 1200 × 2800 mm strip, fitted from floor to ceiling without a horizontal joint. Everything can then be cut to measure: the exact height of your room, partial widths, outlines of doors and openings. All 36 shades of the colour chart are available, in 9 or 12 mm thickness, and the carving reads differently depending on the shade: crisp on light tones, velvety on dark tones.
How are the large carved strips fitted?
Like flexible panelling: bonding with mounting adhesive on a flat surface, starting from a perfectly plumb edge, then each following strip matching the pattern. The felt weighs around 2 kg/m², so a full strip is handled by two people without difficulty. On an irregular wall, screw fixing with spacers corrects the defects and creates a cast shadow that accentuates the carving.
Are carved panels suitable for public buildings?
Yes. The carving changes nothing in the fire rating: the felt stays certified EN 13501-1 B-s1,d0, the level expected in public-access buildings, with the classification report supplied with every order. The collection equips restaurants, hotels, reception areas and shops without restriction.
A printed pattern is looked at. A carved pattern is touched, casts shadows and lives with the light: that is the difference between a decor and a material.
Fifteen patterns carved into the felt, with nothing given up on absorption.
Your made-to-measure carved wall.
Dimensions, the pattern you have in mind, a photo of the wall: we come back within 48 h with a layout plan and a free quote, DDP delivery in 10 to 15 days.
